Terrain & relief

AcadGIS renders shaded relief and hypsometric (elevation-tinted) terrain from Copernicus GLO-30 — a 30 m global DEM that needs no API key.

import acadgis as agis

dem = agis.load_dem("Bagrote Valley")
agis.relief(dem, hillshade=True)

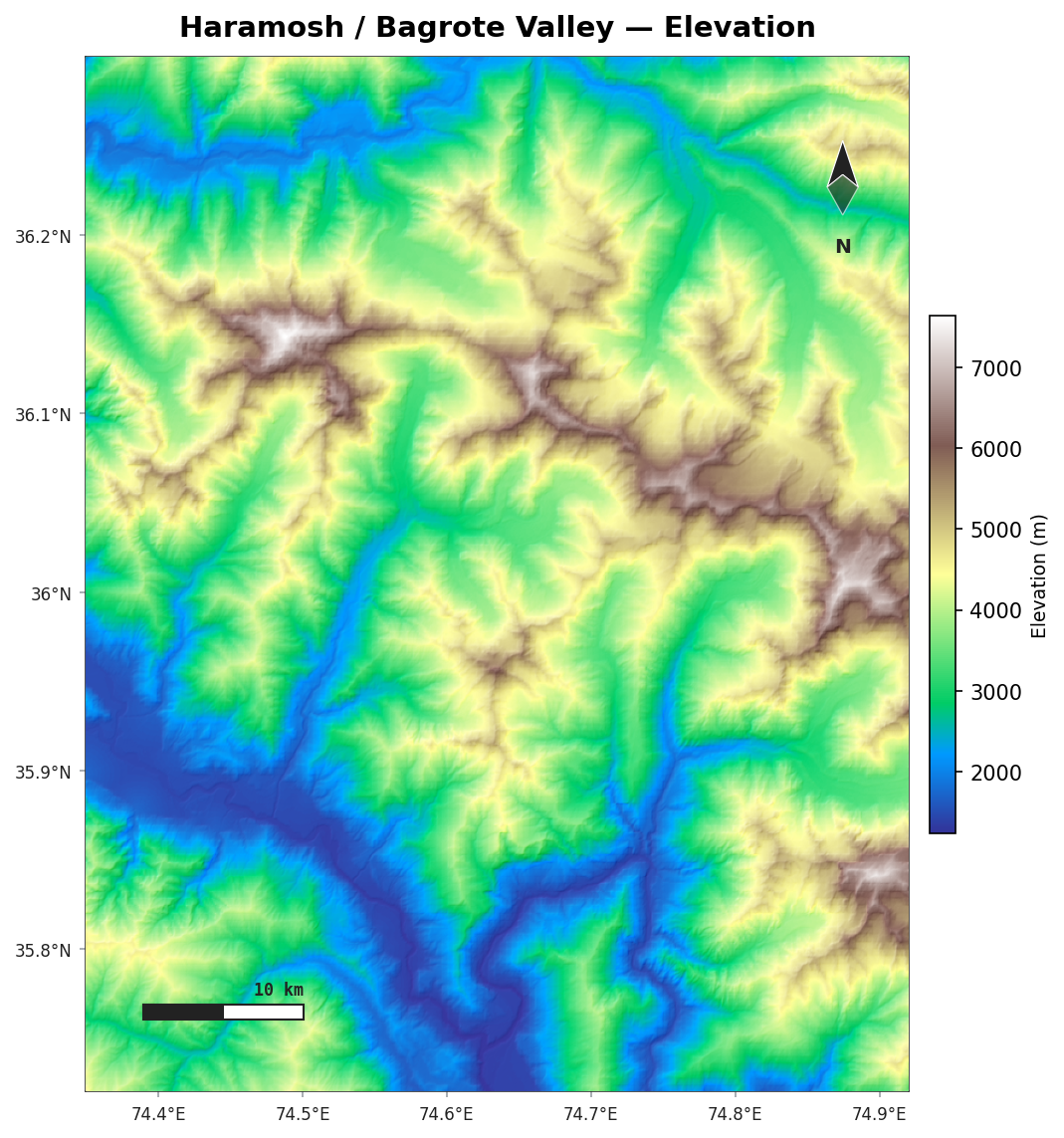

Shaded relief

Install the terrain extra

pip install "acadgis[terrain]" (adds rasterio and rioxarray).

Loading a DEM

load_dem() accepts a place name, a bounding box, or a GeoDataFrame — it downloads and mosaics the GLO-30 tiles that cover the area:

dem = agis.load_dem("Bagrote Valley")                 # by name
dem = agis.load_dem((73.9, 35.7, 74.5, 36.3))         # (minx, miny, maxx, maxy)
dem = agis.load_dem(agis.load_boundaries("Iraq", "governorate", within="Erbil"))

Hypsometric tint and hillshade

agis.relief(dem,
            hillshade=True,        # blend a shaded-relief layer
            cmap="terrain",        # any matplotlib colormap
            legend_label="Elevation (m)")

Useful colormaps for terrain: terrain, gist_earth, gnuplot2, cividis.

Realistic coast to the ocean

Render the sea in a believable colour so topography reads clearly down to the coastline:

agis.relief(dem, hillshade=True,
            ocean_color="#cce5f0", sea_level=0.0)

Topography to the ocean

Decorations and export

relief() shares the decoration system — graticule, north arrow, scale bar — and returns the axes:

ax = agis.relief(dem, hillshade=True, north_arrow=True,
                 scale_bar=True, graticule=True)
agis.save("relief.png", dpi=300)

Just the hillshade

For a grayscale shaded-relief layer to composite yourself:

hs = agis.hillshade(dem)

Drainage networks

With the drainage extra you can extract stream networks from a DEM by flow accumulation:

streams = agis.drainage(dem)
ax = agis.relief(dem, hillshade=True)
agis.add_streams(ax, streams)

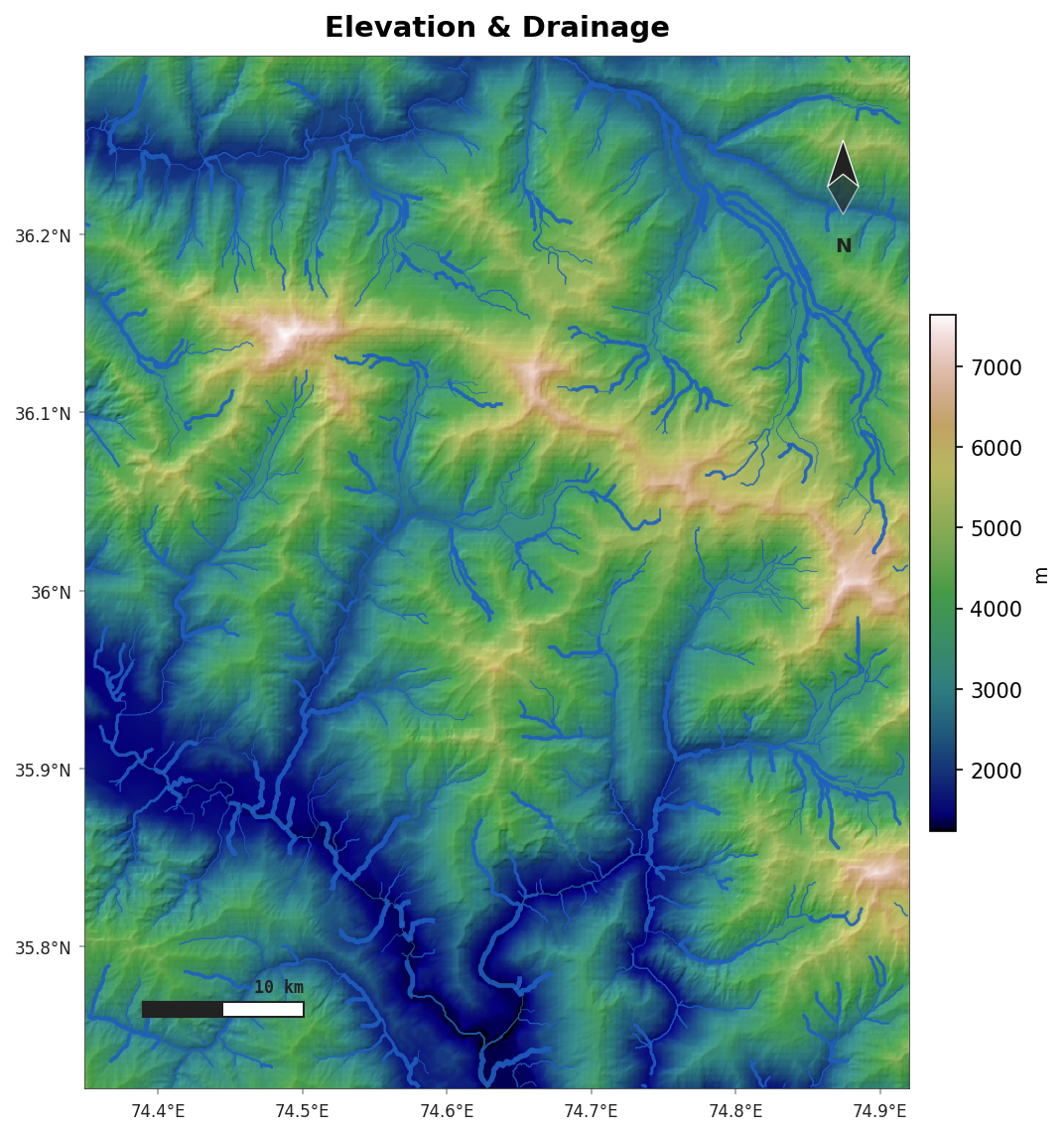

Terrain with drainage

Requires pip install "acadgis[drainage]".
