Tutorial: Bangladesh → Dhaka → Madaripur

Build a complete study-area figure for a Bangladeshi research site, from the country down to a district, ending on real terrain. Everything here runs on the bundled offline data (the terrain panel needs pip install "acadgis[terrain]").

1. Set up

import acadgis as agis
print("AcadGIS", agis.__version__)

STEPS = [("division", "Dhaka"), ("district", "Madaripur")]

2. The cascade layout

The cascade template gives two context panels (country + division) and a large focus panel (the district), rendered as terrain:

agis.study_area(
    "Bangladesh", steps=STEPS, template="cascade", terrain=True,
    suptitle="Bangladesh → Dhaka → Madaripur",
)

Cascade: Bangladesh to Madaripur

3. A uniform three-panel series

Prefer three equal panels? Switch the template — the same call, no other changes:

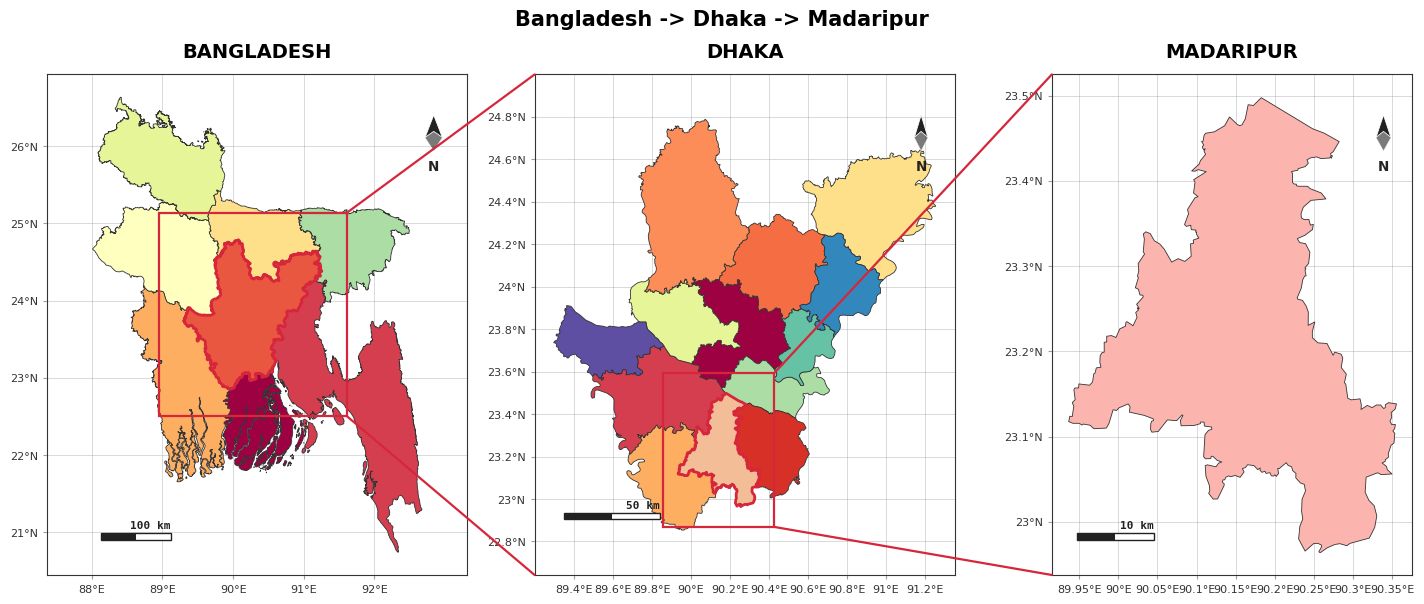

agis.study_area("Bangladesh", steps=STEPS, template="series",
                suptitle="Bangladesh → Dhaka → Madaripur")

4. Customize it

Make the highlight a rectangle, set per-panel graticule spacing, restyle the connectors and turn the focus-box off:

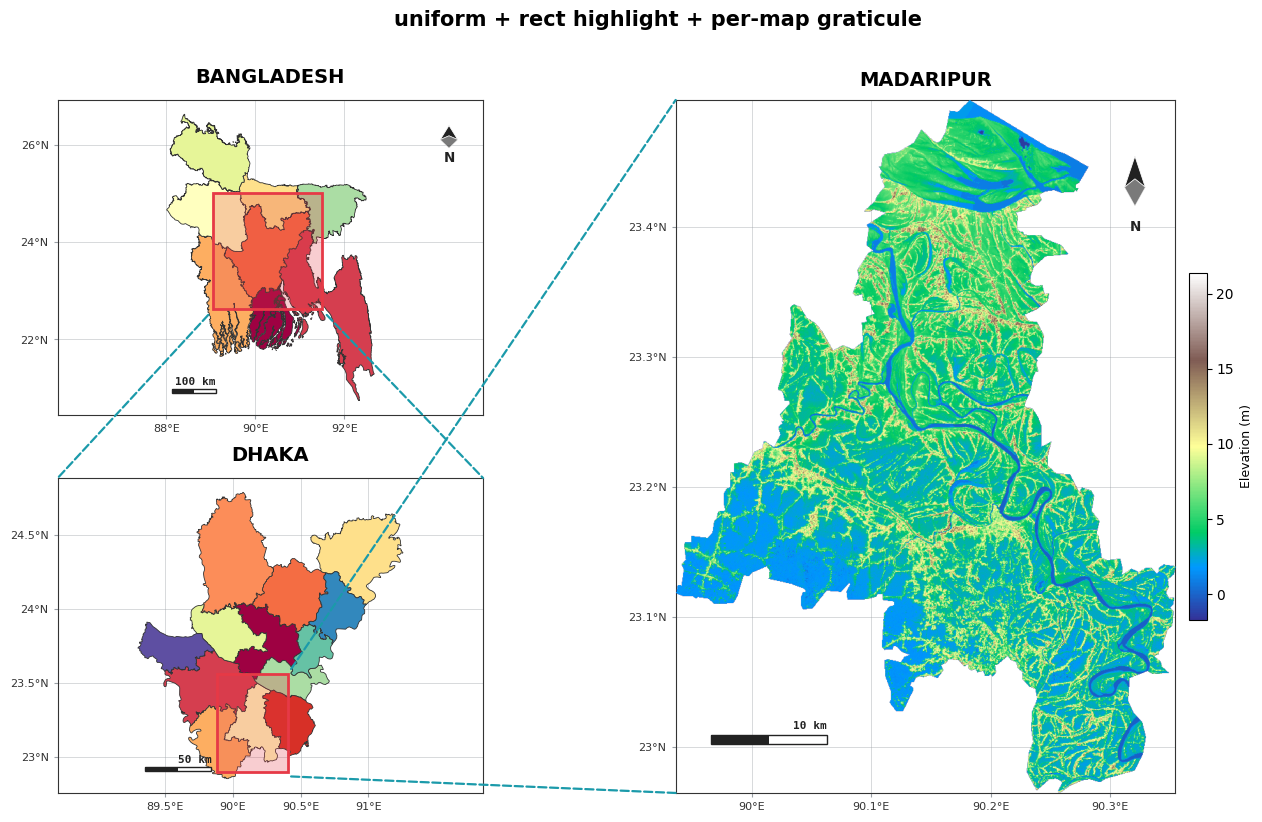

agis.study_area(
    "Bangladesh", steps=STEPS, template="cascade", terrain=True,
    uniform_panels=True,
    highlight_style="rect", highlight_color="#e63946", highlight_alpha=0.25,
    graticule=[True, True, True], graticule_interval=[2, 0.5, 0.1],
    north_arrow=[True, False, True],
    link_color="#1b9aaa", link_style="--", box=False,
    suptitle="Customized cascade",
)

Try a circular highlight, or a border-overlay with the grid off on the focus map:

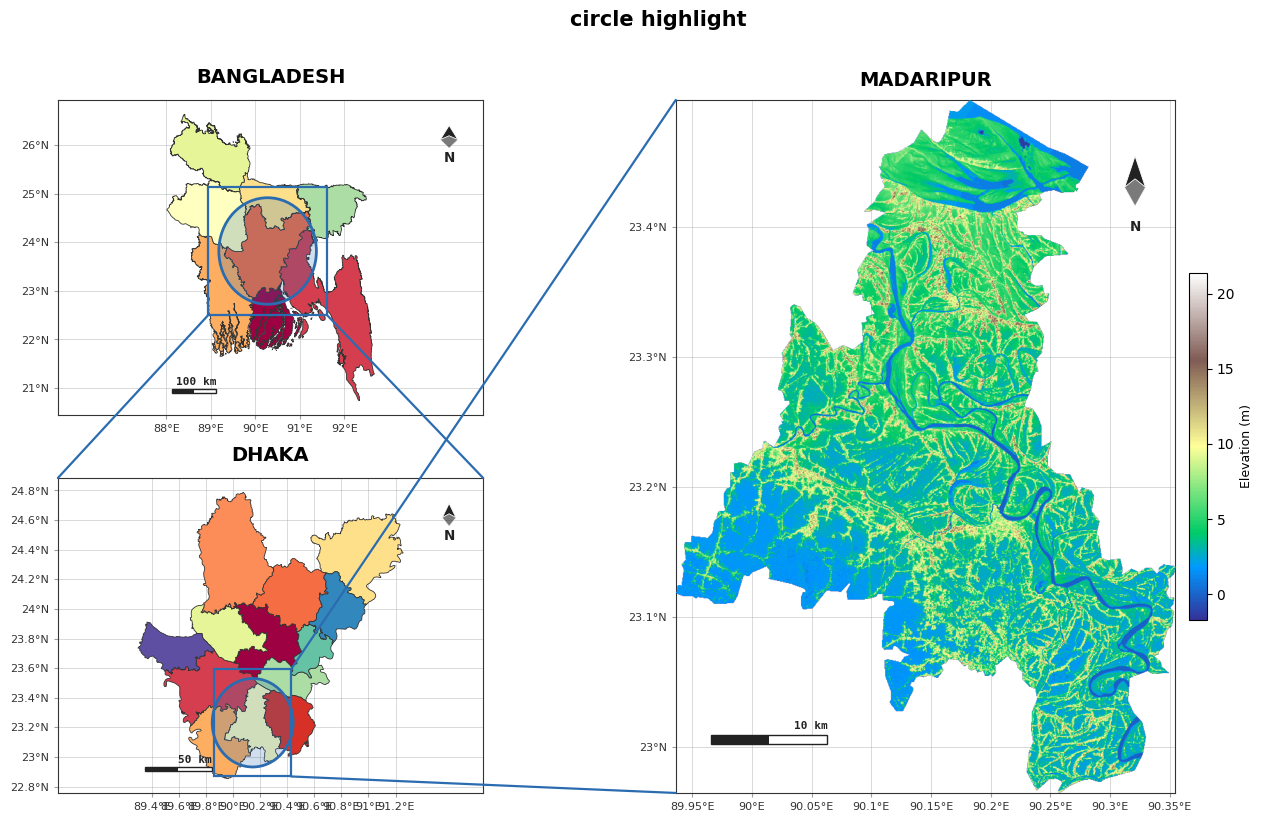

agis.study_area("Bangladesh", steps=STEPS, template="cascade", terrain=True,
                highlight_style="circle", highlight_color="#2b6cb0",
                highlight_alpha=0.22)

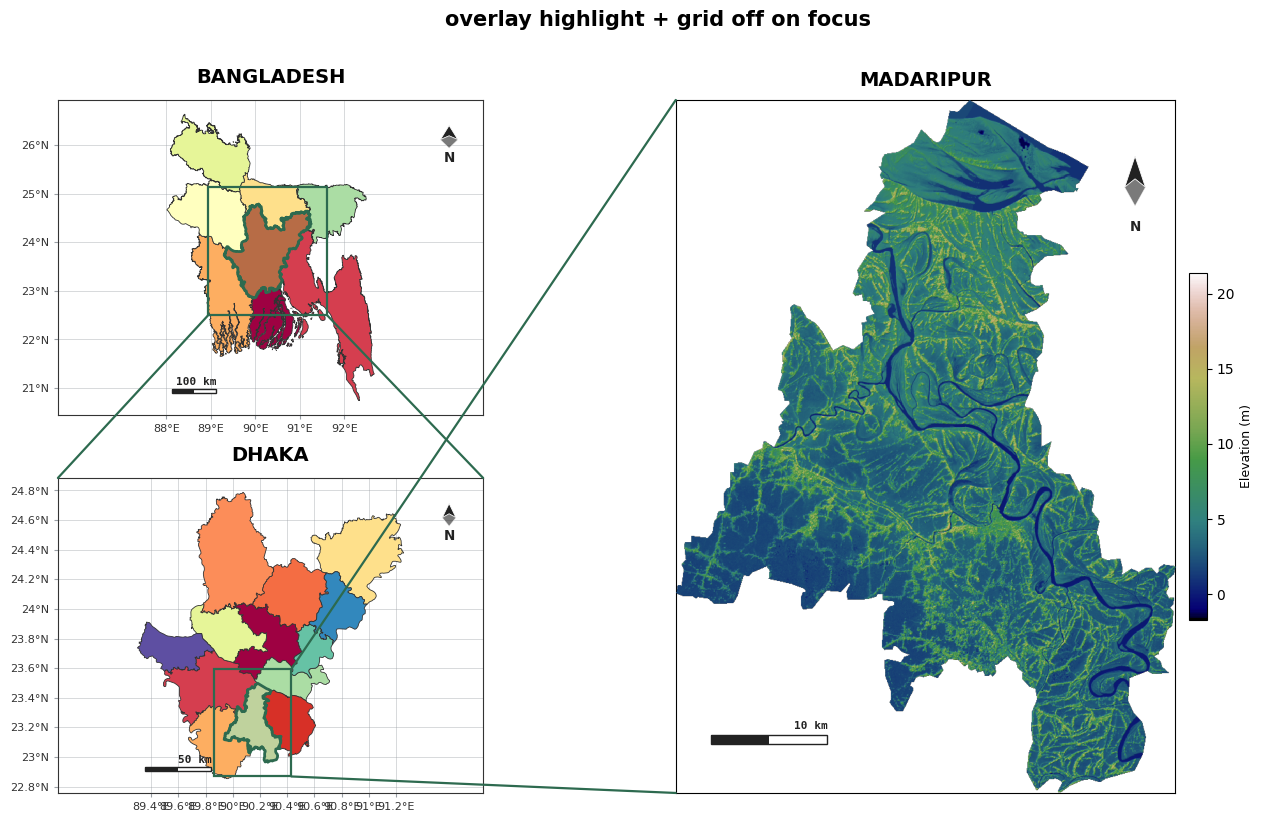

agis.study_area("Bangladesh", steps=STEPS, template="cascade", terrain=True,
                highlight_style="overlay", highlight_color="#2d6a4f",
                graticule=[True, True, False], cmap="gist_earth")

5. Resize the panels

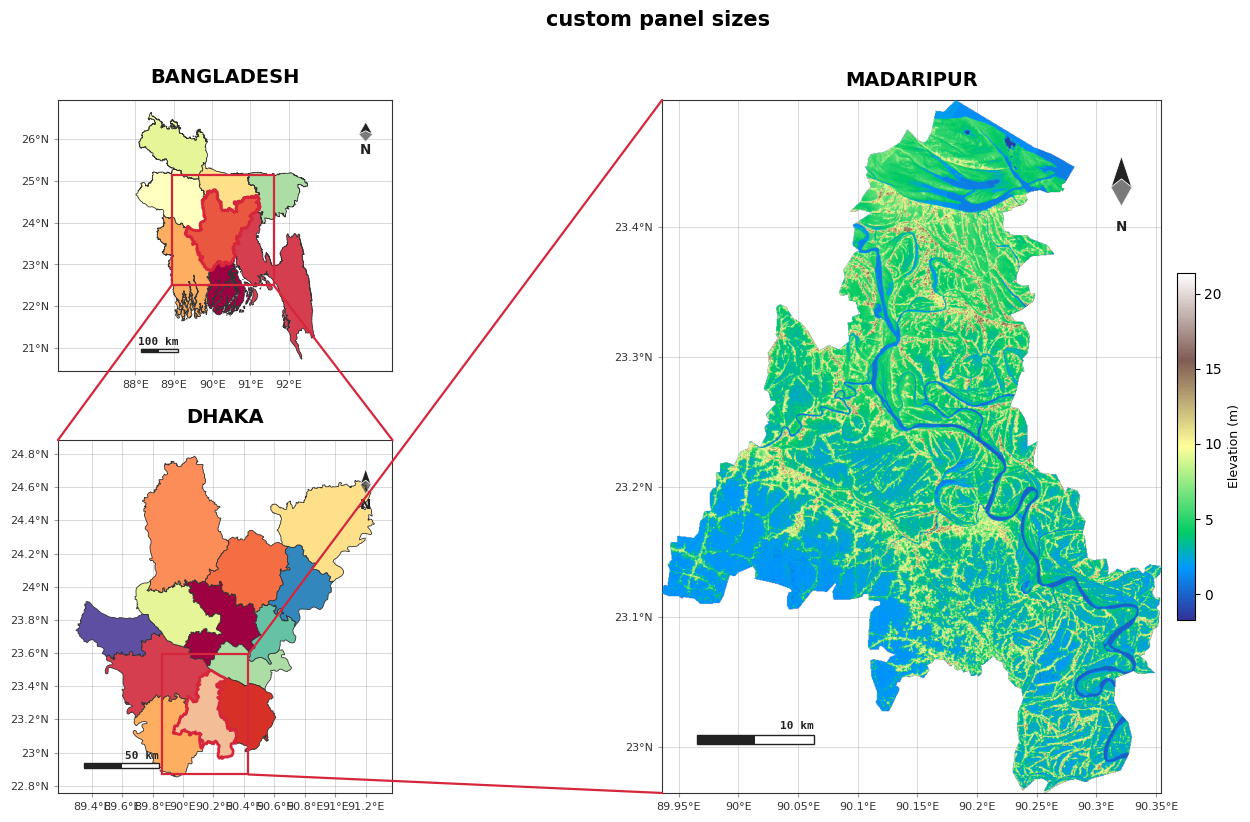

agis.study_area("Bangladesh", steps=STEPS, template="cascade", terrain=True,
                width_ratios=[1, 2.4], height_ratios=[1, 1.3],
                wspace=0.18, hspace=0.22,
                suptitle="Custom panel sizes")

6. Export

agis.save("bangladesh_madaripur.pdf", dpi=300)

Low delta

Bangladesh is a low delta, so Madaripur's relief is gentle — a few metres. Swap terrain=True for polygon detail, or change the district, with the same call.

Next: India → West Bengal → Kolkata, which adds collected data points.
